Description
Product information

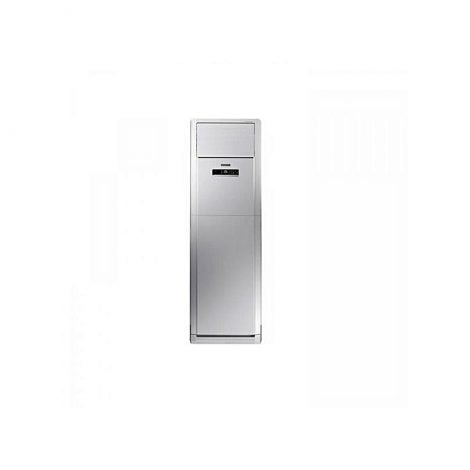

Product Type : Floor Standing
Power Cooling : Yes
Indoor Unit Noise Level (H/M/L) : 50 / 48 / 46 dB(A)
Refrigerant Type : R22
General Specifications
Power Supply (ø / V / Hz) : 3/380~415/50
Cooling Capacity : 25000 Btu/h
Power Input (Set) : 3300 W
EER : 7.58 Btu/h/W
COP : 2.22 W/W
Indoor Unit
Running Current : 0.7 A
Air Flow Rate (H/M/L) : 17 / 15 / 13 CMM
Dehumidification Rate : 3.0 l/h
Drain (Outdoor / Indoor) Ø : 20.0, 16.0 (0.79,0.63) mm(in)
Body Dimensions (W x H x D): 530 x 1,777 x 291 mm
Net Weight : 30 (66.1) kg(lbs)
Outdoor Unit
Compressor Type : Twin Rotary
Sound Level : (H) 62 dB(A)
Dimensions (W x H x D) : 870 x 808 x 320 mm
Net Weight : 60 (132.3) kg(lbs)
Piping Connections (Liquid) : 9.52 (3/8) mm(in)
Piping Connections (gas) : 15.88(5/8) mm(in)
Max. Piping Length (Main Piping) : 30 m
Max. Elevation Difference (Indoor-Outdoor) : 15 m
