SPECIFICATIONS

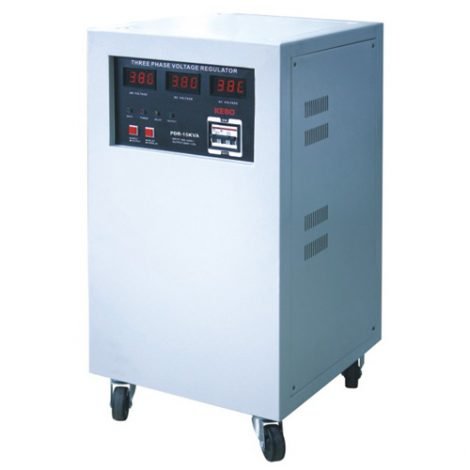

Model PDR-15KVA
Power 15000VA
Technology CPU based Digital Circuit + Servo Motor
Input Voltage Range Input 260-430Vac
Input Frequency 50 / 60Hz
Output Output Voltage 380Vac
Output Precision ± 3%
Efficiency 98%
Phase Three Phases
Digital LED Display Status Input Voltage / Output Voltage
Blue LED Display Status Input; Indicating phase A / B and C input voltage normal / abnormal
Power Red; Indicating power ON / OFF.
Delay Yellow; During delay, this LED flashes, delay finished, goes off.
Output Blue; Indicating the output voltage ON / OFF
Protection High Voltage Protection Yes
Low Voltage Protection Yes
Overload Protection Yes
High Temperature Protection Yes
Circuit Protection Air Switch
Smart Cooling System Yes
Safety Standards CE, EN 60950, EN55024
Operating Conditions Operating Temperature 0-40 ° C
Storage Temperature -15 to 45 ℃
Operating Relative Humidity 10% RH-102% RH, Non-condensing
Inner Box dimension (mm) 845 × 445 × 410
Unit Weight (kg) 62.3
